Trail X A2 Hardtail Mountain Bike

• Frame: 6061 aluminum main tubes, over-sized seat tube, zero-stack head tube, over-sized stays, replaceable derailleur hanger

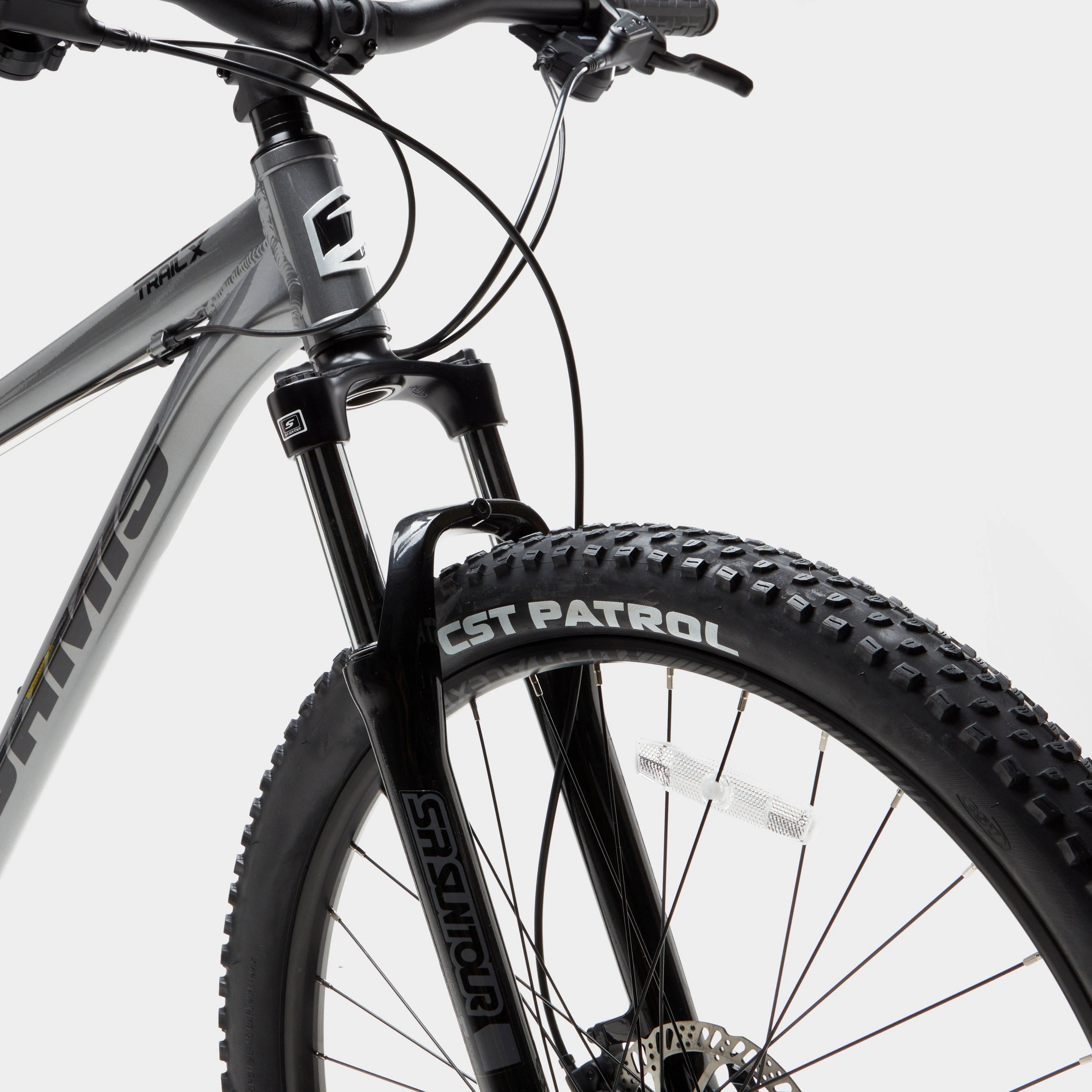

• Fork: SR Suntour XCE 28 DS 27.5”, coil spring, external preload adjustor, 28mm stanchions, aluminum lowers, 100mm travel
• Headset: Zero-stack internal cup, 8mm cone spacer
• Wheels: Alex TD26 27.5” double wall rims, 32H, alloy disc hubs, 14G black electroplated spokes
• Tires: CST Patrol, 27.5 x 2.25”
• Derailleurs: Shimano Tourney rear and Altus front
• Shift levers: Shimano EF505, 2×8-speed
• Chain: KKMC Z8.3, 8-speed
• Cassette: Shimano HG31, 8-speed, 11-32T
• Crankset: Forged Alloy, 36/22T
• BB Set: Sealed cartridge
• Pedals: MTB platform, hi-impact resin
• Brakeset: Shimano MT200 hydraulic disc, Shimano RT26 160mm rotors
• Handlebar: Jamis XC alloy riser, 31.8 x 20mm rise x 740mm
• Stem: Jamis XC alloy threadless, 31.8 x 3 ÌŠ rise x 60mm
• Grips: Kraton
• Seat Post: Jamis alloy micro-adjust, 31.6 x 350mm (15”) 400mm (17”-21”)
• Saddle: Jamis ATB Sport
• Sizes: 13”, 15”, 17”, 19”, 21”
• Weight: 32 lbs

Please Note: Due to ongoing issues in the supply chain, this bike is subject to specification changes without notice. Any changes made will be using equivalent or higher quality parts.

**Some minor assembly is required. See our video (below) or consult our assembly guide for assistance.

Unfortunately, we are not able to process faulty or warranty bike returns through our warehouse. If your bike develops a fault, please take it to your nearest GO Outdoors store where we have a full workshop and trained mechanics who will be able to assist you.

Please note, this excludes Hathersage and Southport stores.
