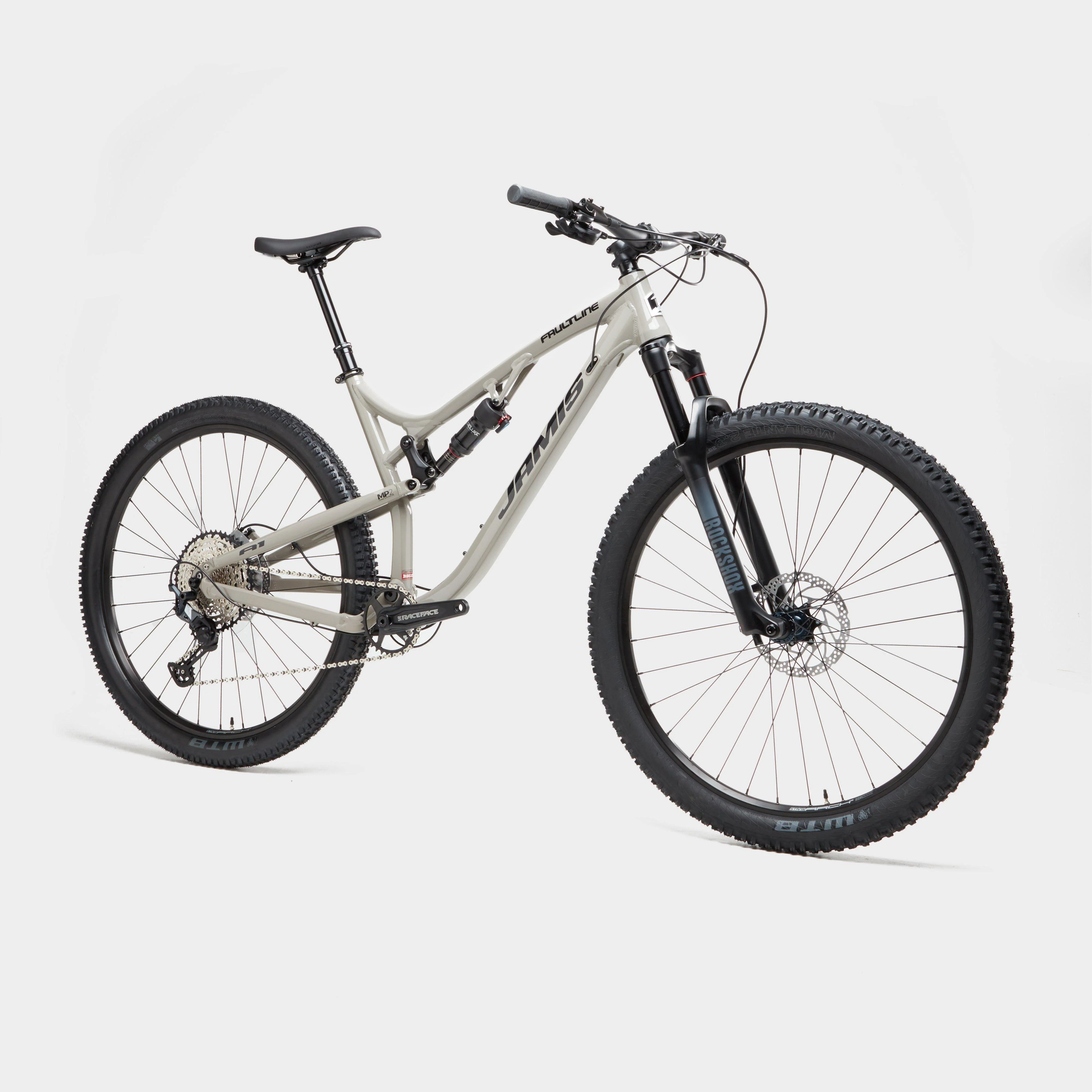

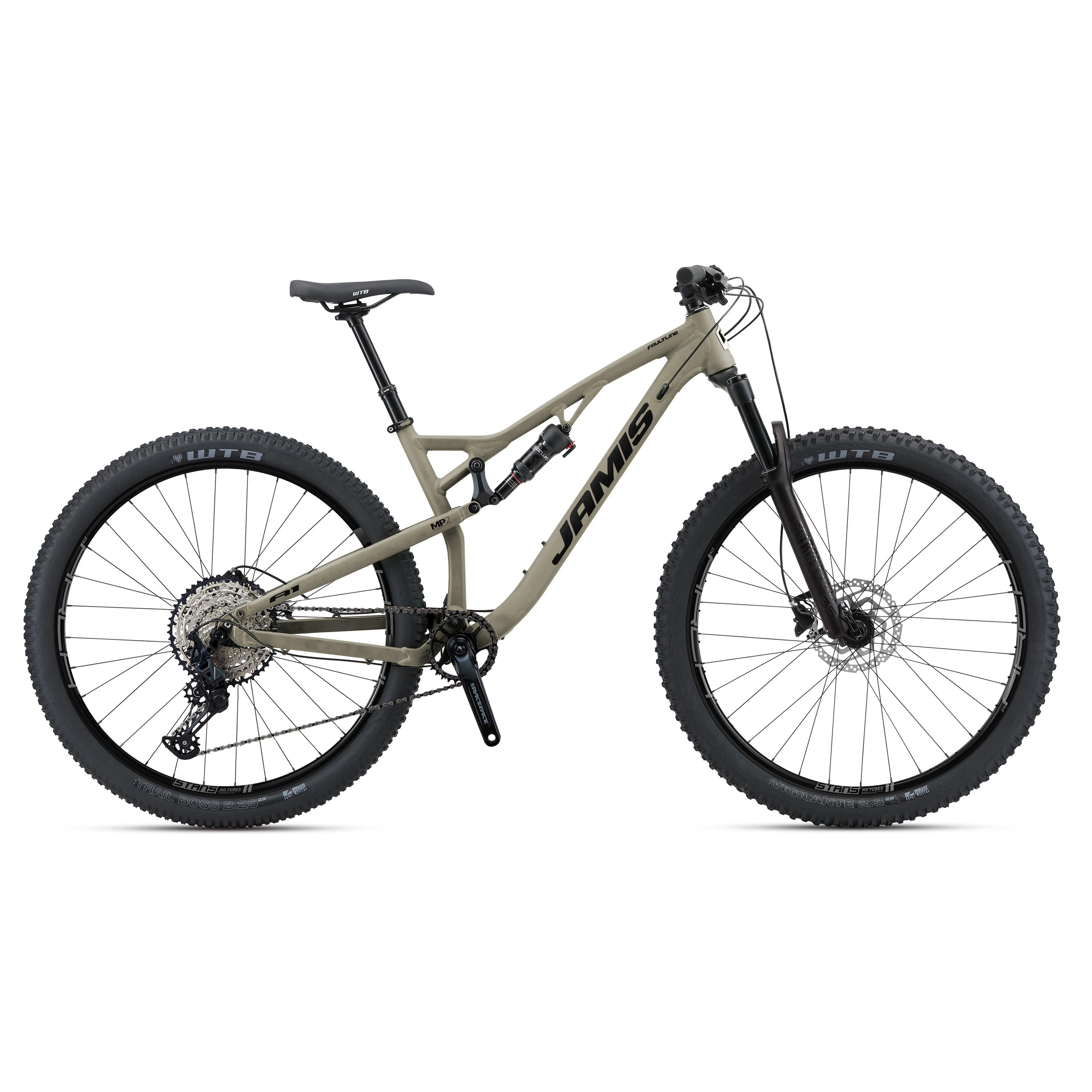

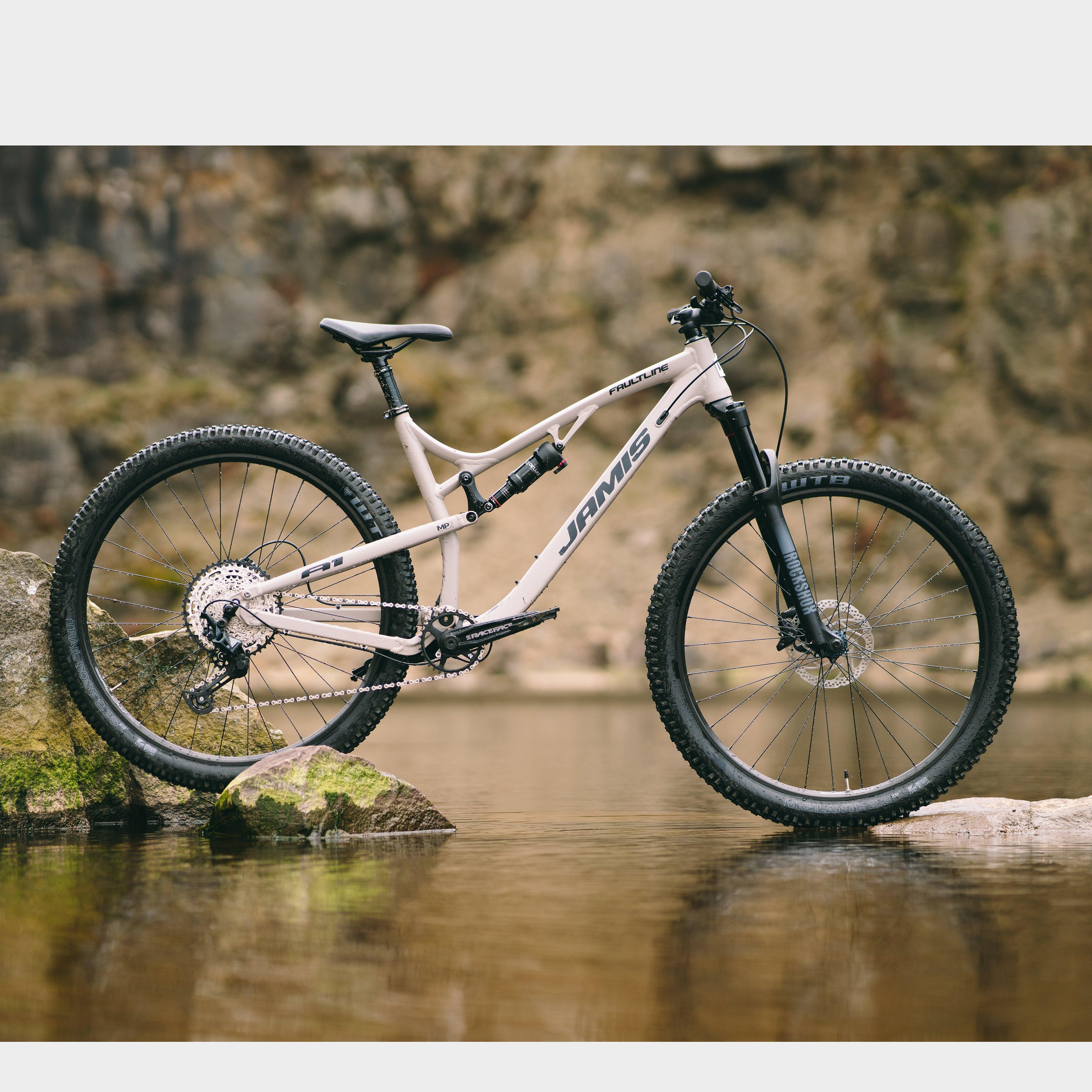

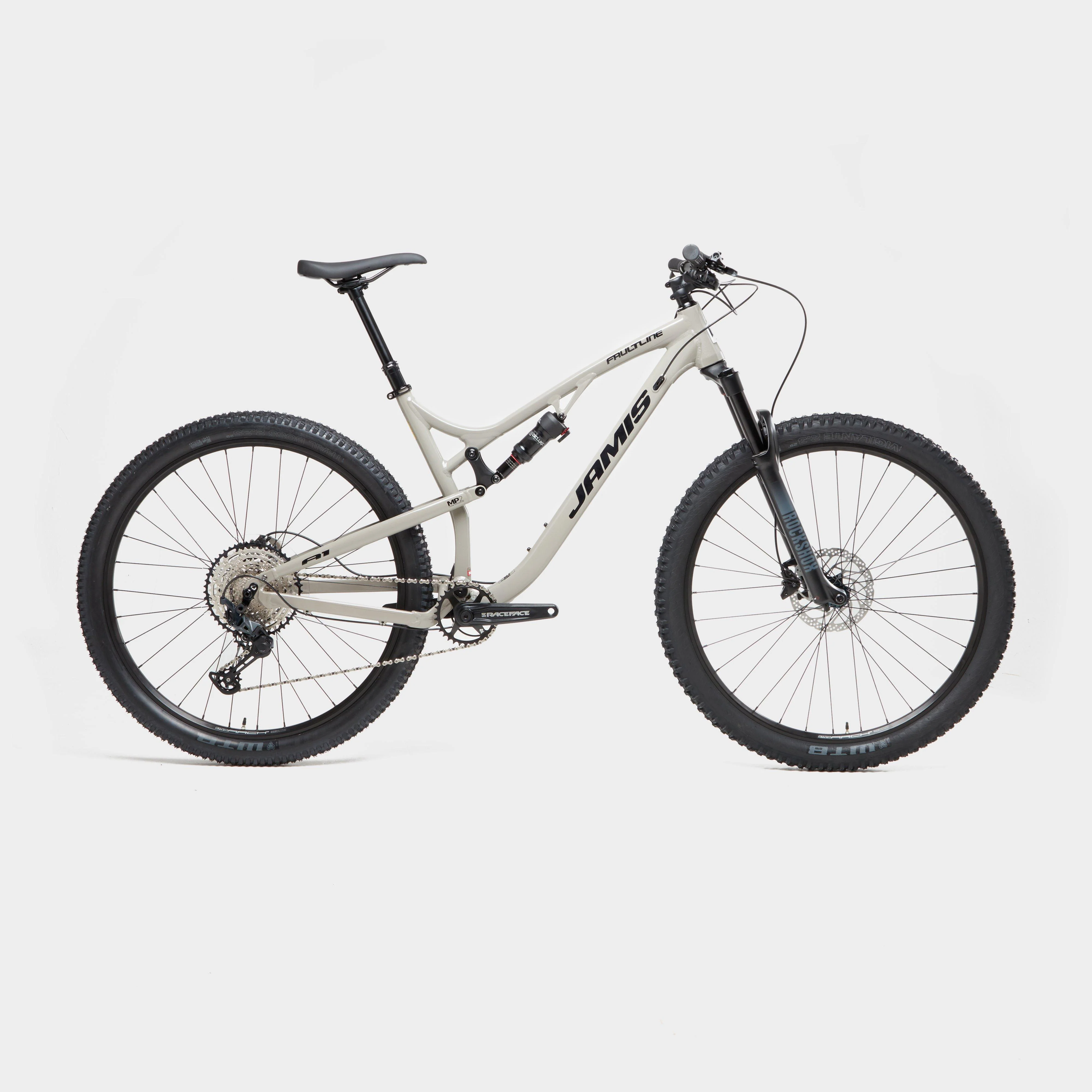

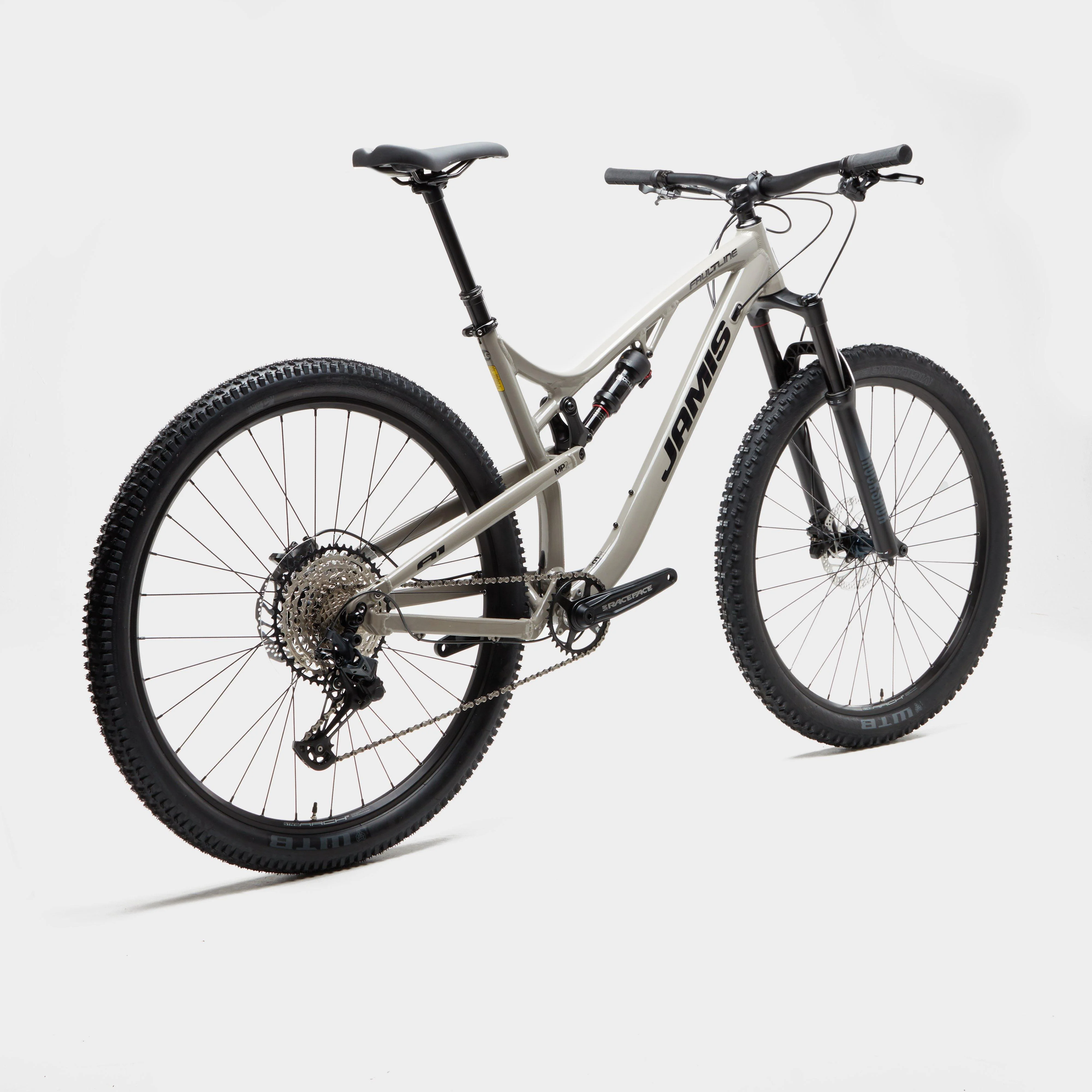

Faultline A1 Full Suspension Trail Bike
- Frame: Triple-butted 6061 alloy, 120mm travel mp2 suspension, 1.5 – 1 1/8” tapered head tube, asymmetrical chainstays w/12x148mm thru-axle dropout, internal dropper post routing, ISCG05 chainguide mount, Rock Shox Deluxe Select+ RL air shock with rebound adjust & lock out, replaceable derailleur hanger

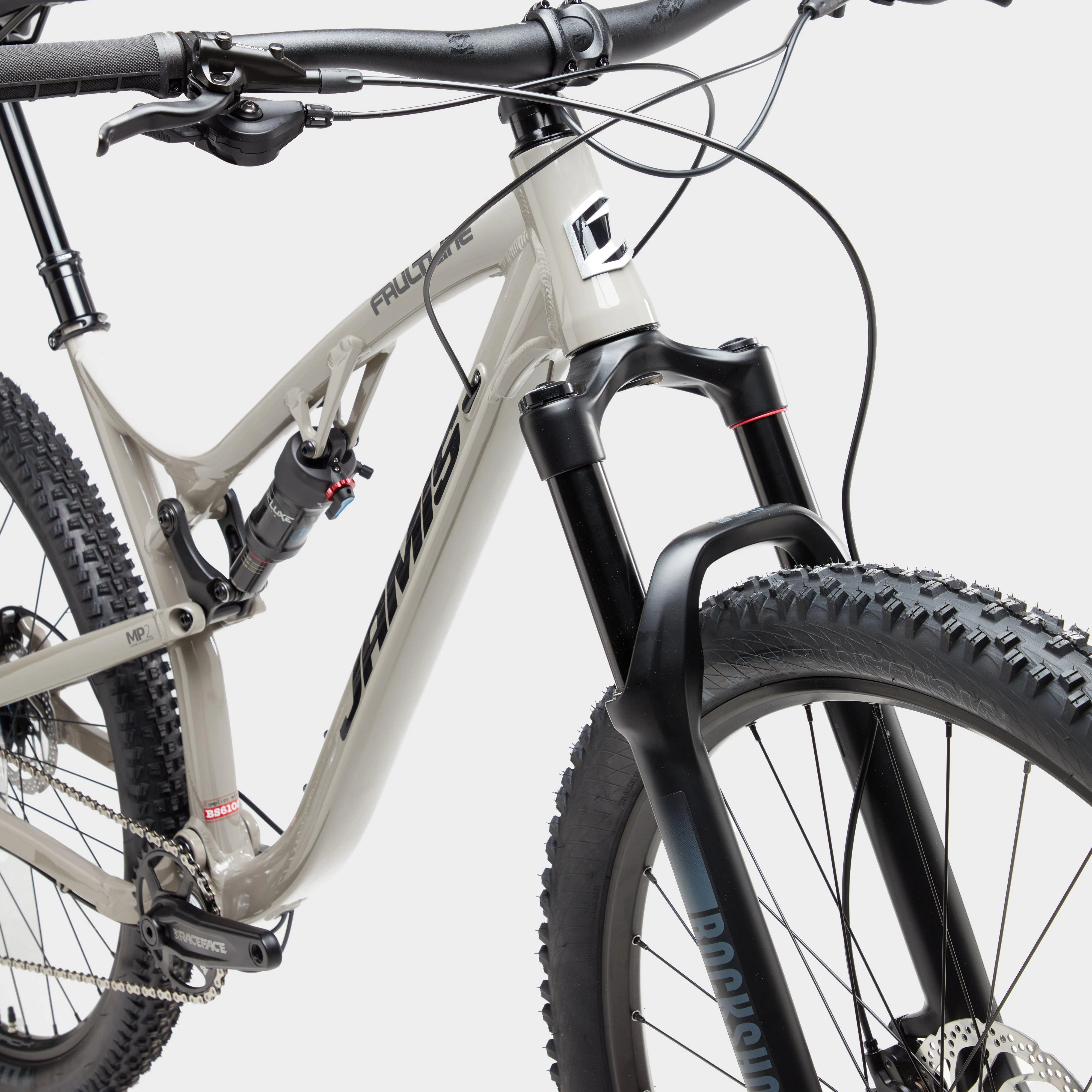

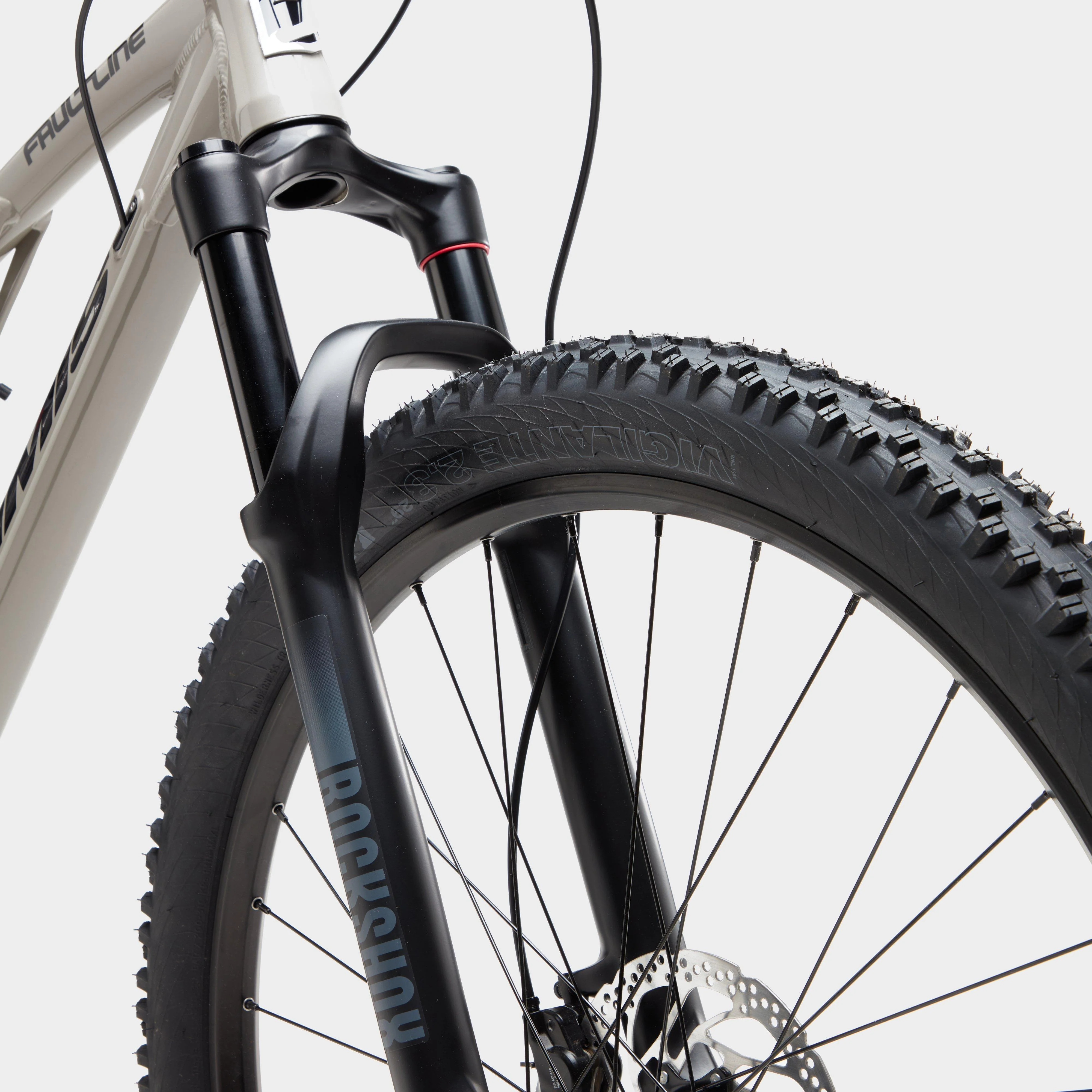

- Fork: Rock Shox 35 Gold RL 29”, Solo Air compression, lever actuated lockout, external rebound, 35mm aluminum stanchions, magnesium lowers, 15x110mm axle, 130mm travel, 51mm rake
- Headset: FSA Orbit 1.5 Zero-Stack internal cup, 8mm cone spacer
- Wheels: Stan’s No Tubes Arch D 29” tubeless rims, 32H, Shimano SLX 15x110mm front & 12x148mm rear hubs, stainless spokes
- Tires: WTB Vigilante 29 x 2.35” Front & Trail Boss 29 x 2.25” Rear, TCS Tubeless

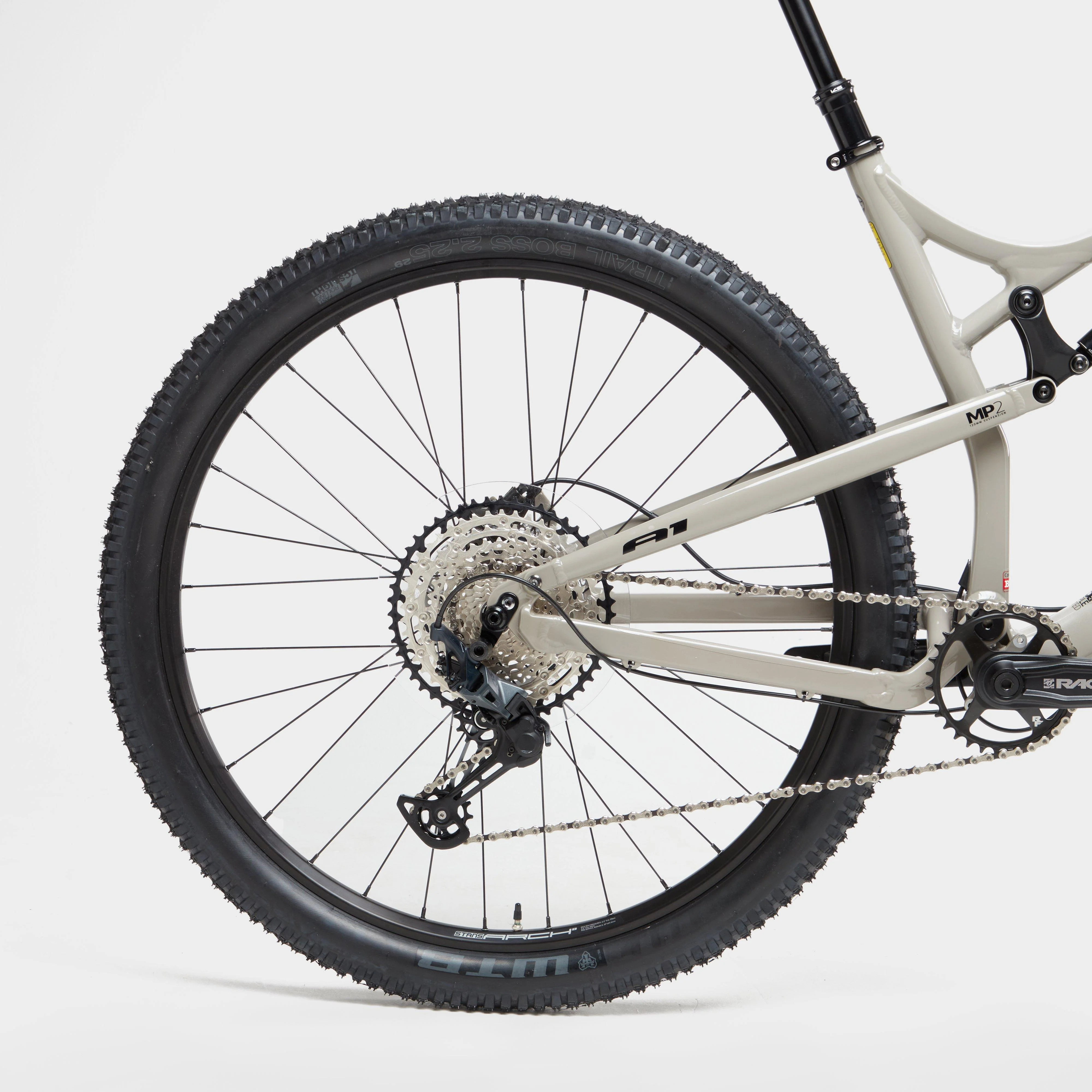

- Derailleurs: Shimano SLX, 12-speed
- Shift levers: Shimano SLX, 1×12-speed
- Chain: KMC X12, 12-speed
- Cassette: Shimano M7100, 12-speed, 10-51T
- Crankset: Race Face Ride, 32T
- BB Set: Race Face BSA
- Brakeset: Shimano MT401 hydraulic disc, 180mm front & 160mm rear RT30 rotors
- Handlebar: Race Face Ride, 35 x 760mm
- Stem: Race Face Ride, 50mm
- Grips: Jamis Lock-On
- Seat Post: KS Rage Dropper, Southpaw remote
- Saddle: WTB Volt

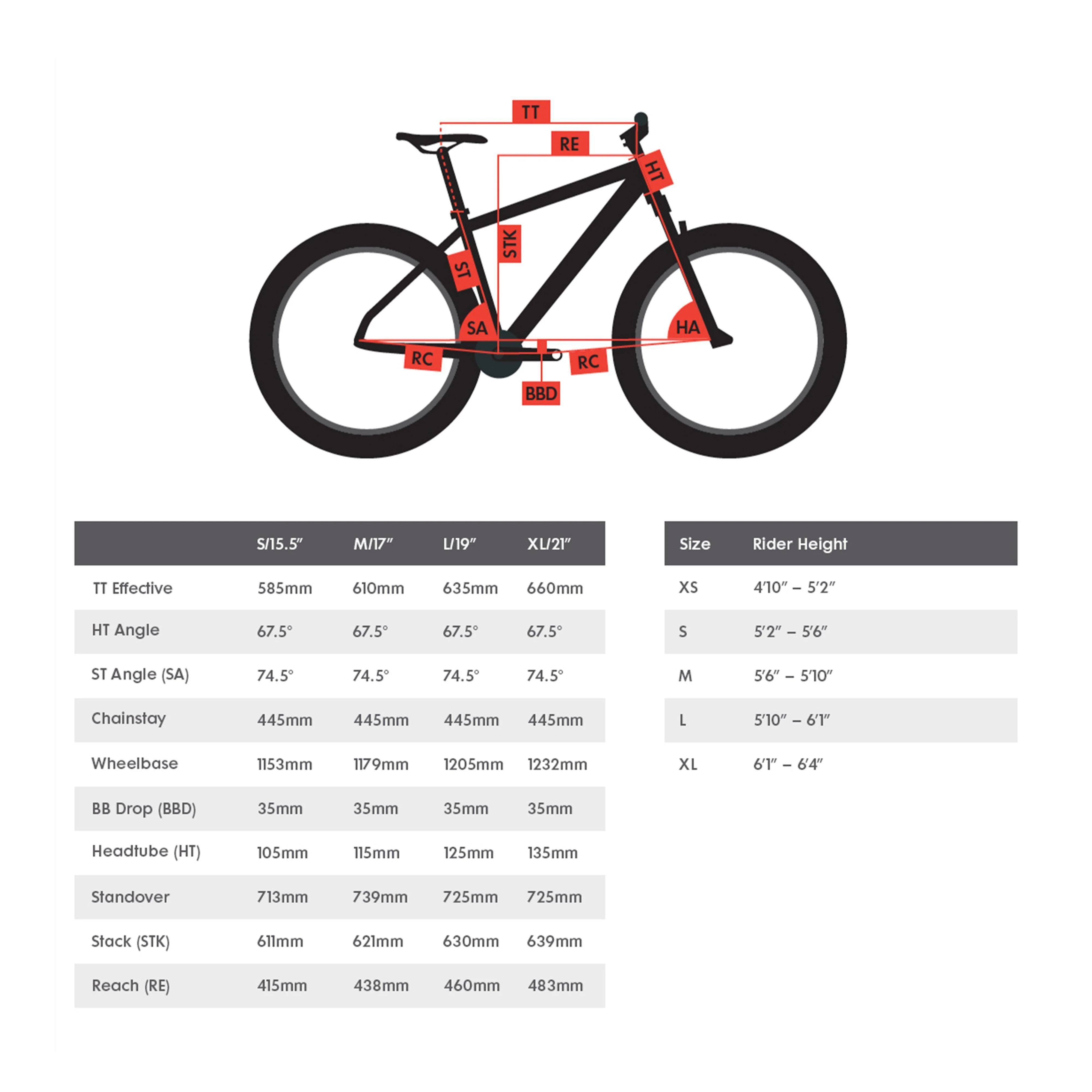

- Sizes: 15.5”, 17”, 19”, 21”
- Weight: 33 lbs
**Some minor assembly is required. See our video (below the image) or consult our assembly guide for assistance.
Unfortunately, we are not able to process faulty or warranty bike returns through our warehouse. If your bike develops a fault please take it to your nearest GO Outdoors store where we have a full workshop and trained mechanics who will be able to assist you.
Please note, this excludes Hathersage and Southport stores.
