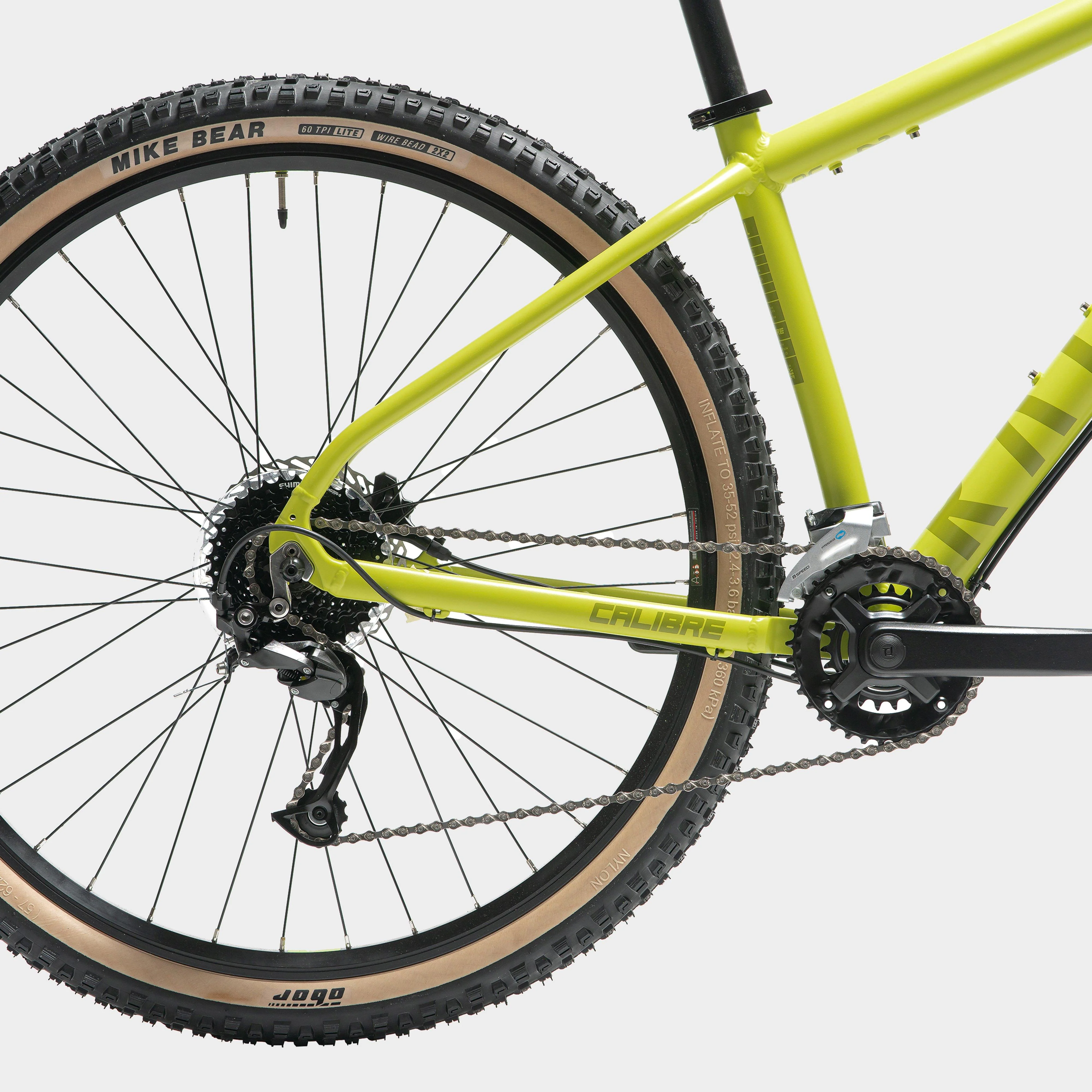

Rail 29”

Sharing a chassis with the barnstorming Rake 29” bike, the Calibre Rail is a big-wheeled bike that performs like a proper modern mountain bike, but for a lower price. The combination of its steep seat angle and slacker head angle creates a great climber and a confident hill bomber; it’s a composed ride that’s great for anyone starting out. Suspension on this hardtail is taken care of by a fuss-free, coil-sprung Suntour XCM fork with100mm of travel.

The Rail’s Shimano drivetrain works well with the handsome tan-walled OBR tyres to create speed and keep you in control. Its Clarks M2 hydraulic brakes provide ample stopping power in all conditions. Altogether, this bike is far more capable than its price tag suggests -it’s a budget all-rounder and a team favourite.

About Calibre

Calibre Bikes have a simple ethos: to build high-quality road and mountain bikes, that are affordable and fun to ride. Thoughtful and innovative design, with great attention paid to geometry and spec, makes Calibre an award-winning brand that leads the pack.

Frame: Alu 6061 29”, 135 QR, Post-mount disc, 44mm headtube

Fork: SR Suntour SF15 XCM forks with 100mm of travel

Handlebar: Calibre Trail, Alloy 780mm wide, 20mm upsweep, 6°backsweep, 31.8mm clamp

Stem: Calibre Trail, 31.8mm clamp, 45mm extension

Grips: Calibre Trail, Single lock-on, soft compound, integrated bar end

Headset: Semi-integrated, ZS44

Saddle: Calibre Trail, steel rails

Seatpost: Calibre Trail 30.9 x 350mm

Seatclamp: Calibre QR 34.9MM

Chainset: Calibre 175mm 22x36T

Pedals: Flat pedals

Bottom Bracket: Square taper 73mm BB

Drivetrain: Shimano 18 speed

Cassette: Shimano 9 speed Acera 11-34T

Chain: KMC X9

Shifter Right: Shimano Alivio 9 speed for 2x9

Shifter Left: Shimano Alivio 2 speed for 2x9

Rear Derailleur: ShimanoAlivio 9 speed direct mount

Front Derailleur: Shimano Dual pull 34.9 - 31.8 / 36-14T

Tyres: Obor Mike Bear 29” x 2.25” Tan wall

Rims: 29”, 25mm wide, 32h, alu double wall

Front Hub: Shun Feng, SF-A217F, Alu, black, 36h, 6 bolt disc, 100mm QR

Rear Hub: Shun Feng, SF- A217R, Alu, black, 36h, 6 bolt disc, 135 QR

Front Brake: Clarks M2 Hydraulic disc

Rear Brake: Clarks M2 Hydraulic disc

Front Rotor: Clarks Wavey 180mm

Rear Rotor: Clarks Wavey 160mm

Please Note: Due to ongoing issues in the supply chain, this bike is subject to specification changes without notice.  Any changes made will be using equivalent or higher quality parts.

**Some minor assembly is required. Consult our assembly guide for assistance.

Unfortunately, we are not able to process faulty or warranty bike returns through our warehouse. If your bike develops a fault, please take it to your nearest GO Outdoors store where we have a full workshop and trained mechanics who will be able to assist you. 

Please note, this excludes Hathersage and Southport stores.
